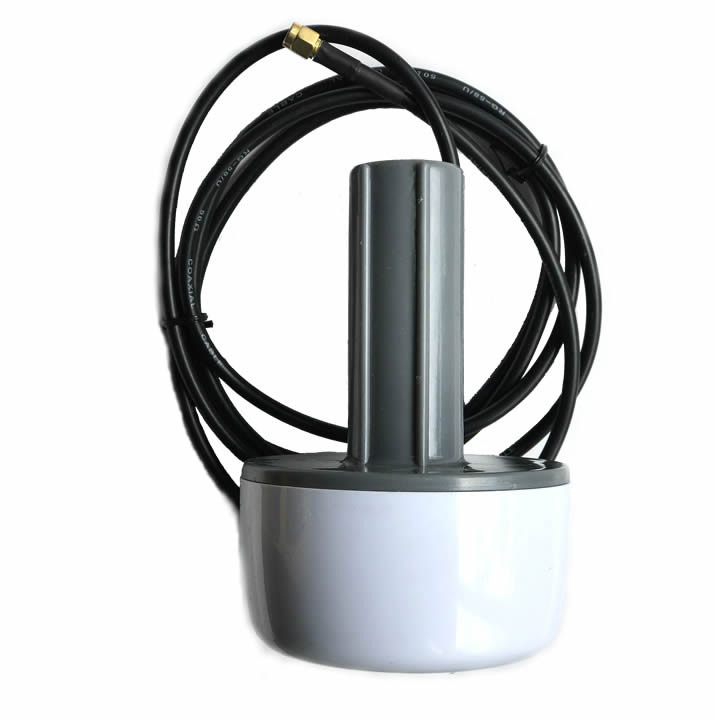

Model No:CY-GPS-05

      Product:GPS Passive Antenna
      Product Description

    (i) Dielectric Antenna
    Center Frequency 1575.42MHz±3 MHz
    V.S.W.R 1.5:1
    Band Width ±5 MHz
    Impedance 50 ohm
    Peak Gain >3dBic Based on 7×7cm ground plane
    Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
    Polarization RHCP

    (ii) LNA/Filter
    LNA Gain(Without cable) 28 dB/38 dB other Typical
    Noise Figure 1.5dB
    Filter Out Band Attenuation (f0=1575.42 MHZ)
    7dB Min f0+/-20MHZ ;
    20dB Min f0+/-50MHZ
    30dB Min f0+/-100MHZ
    V.S.W.R <2.0
    DC Voltage 2.7V/3.0V/3.3V/5.0V/ 3.0V to 5.0V /other
    DC Current 11mA/15mA Max

    (iii) Mechanical
    Weight <430gram
    Size Ø93×136mm;
    Cable RG58 5 to 100 meters
    Connector SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
    Mounting M24×1.5
    Housing white

    (iv) Environmental
    Working Temp -40℃~+85℃
    Storage Temp. -45℃~+100℃
    Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
    Humidity Humidity95%~100%RH
    Weatherproof 100%Waterproof
